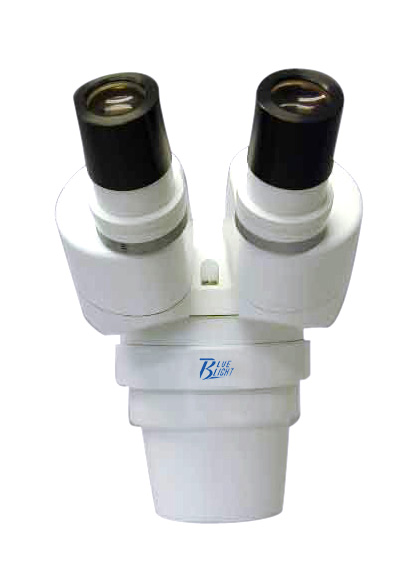

XT STEREO MICROSCOPE HEAD
|
#1211+#2120 |
XT Fixed Power Binocular
Body (# 1211) with WF10x Eyepiece (#2120) Fixed Objective: 2x Optional Auxiliary Lens: Same as XTL series Total Magnification: 20X standard, 6-100X with optional lens Working Distance: 88mm (without Auxiliary Lens) Interpupillary Distance: adjustable 55mm~75mm Binocular Tube: inclined 45 degree. Diopter Adjustment: ¡À5 Diopters Binocular Body: Can be rotated a full 360 degree A wide variety of auxiliary lenses and eyepieces are available. |
XT series Stereo Microscope with fixed 2x objective lens, it has large field of view and big depth of field, a wide variety of optical lenses and stands are available.
OPTICAL SPECIFICATIONS
|
Auxiliary Lens |
Eyepiece |
Magnification |
Field Of View |
Working Distance |
|
0.3x |
WF5x (24mm) |
3x |
43mm |
263mm |
| WF10x(22m) |
6x |
38mm | ||
| WF10x(19mm) |
6x |
33mm | ||
| WF15x(16mm) |
9x |
26.7mm | ||
| WF20x(11.5mm) |
12x |
19.2mm | ||
| WF25x(9mm) |
15x |
18.3mm | ||
|
0.5x |
WF5x (24mm) |
5x |
26mm |
165mm |
| WF10x(22mm) |
10x |
23mm | ||
| WF10x(19mm) |
10x |
20mm | ||
| WF15x(16mm) |
15x |
16mm | ||
| WF20x(11.5mm) |
20x |
11.5mm | ||
| WF25x(9mm) |
25x |
11mm | ||
|
0.75x |
WF5x (24mm) |
7.5x |
17.3mm |
107mm |
| WF10x(22mm) |
15x |
15.3mm | ||
| WF10x(19mm) |
15x |
13.3mm | ||
| WF15x(16mm) |
22.5x |
10.7mm | ||
| WF20x(11.5mm) |
30x |
7.7mm | ||
| WF25x(9mm) |
37.5 |
7.4mm | ||
|
1x(fixed) |
WF5x (24mm) |
10x |
13mm |
88mm |
| WF10x(22mm) |
20x |
11.5mm | ||
| WF10x(19mm) |
20x |
10mm | ||
| WF15x(16mm) |
30x |
8mm | ||
| WF20x(11.5mm) |
40x |
6mm | ||
| WF25x(9mm) |
50x |
5.5mm | ||
|
1.5x |
WF5x (24mm) |
15x |
8.7mm |
51mm |
| WF10x(22mm) |
30x |
8mm | ||
| WF10x(19mm) |
30x |
7mm | ||
| WF15x(16mm) |
45x |
5.3mm | ||
| WF20x(11.5mm) |
60x |
3.8mm | ||
| WF25x(9mm) |
75x |
3.7mm | ||
|
2x |
WF5x (24mm) |
20x |
6.5mm |
33mm |
| WF10x(22mm) |
40x |
6mm | ||
| WF10x(19mm) |
40x |
5mm | ||
| WF15x(16mm) |
60x |
4mm | ||
| WF20x(11.5mm) |
80x |
2.9mm | ||
| WF25x(9mm) |
100x |
2.8mm |
¡¡
