Fan-style Base Stand For Microscope

The modular design allows most of our Stand in different series of microscope, such as XTG, XTL, XTS, XTD and XSZ. We also provide various accessories like color filter, transmitted light base, dark-field stand etc.

SFP3 Fan-style base and Pole Stand

  #3150

(3150) SFP3 Fan-style base and Pole Stand

Base Dimension: 335mm×305mm×21mm. The distance from pole to plate centerline is 167mm.

Vertical Post: Dia.30mm. Main post: 360mm

Focusing Mount (4114) for pole stand: The Ring’s ID.76mm for XTG microscope body, the vertical working distance 360mm. . The distance from FM centerline to pole centerline is 167mm. [Focusing Mount (4115) optional for this pole stand: The Ring’s ID.83mm for XTS, XTL, XTD series microscope body.]

A Locking Ring for vertical stopping.

A Black and White Plastic Plate (4211): Dia.95mm

Two Spring Clips (4233) for holding objective

A Transmitted Light fan-style Base (5331) can be attached. when use the Transmitted Light Base,  A Clear Glass Plate (4212) is needed.

Weight: Net weight 10 lb (4.5kg)

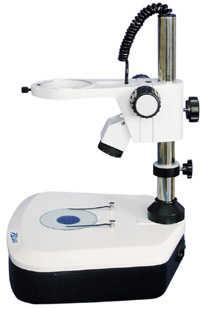

SFP3HF  Fan-style base and Pole Stand with HF

#3151

(3151) SFP3HF  Fan-style base and Pole Stand with HF

Base Dimension: 335mm×305mm×80mm.

Focusing Mount (4114) for pole stand: The Ring’s ID.76mm for XTG microscope body. [Focusing Mount (4115) optional for this pole stand: The Ring’s ID.83mm for XTS, XTL, XTD series microscope body.]

Input Power: 220V/110V. Top Halogen: 6V15W, the top light lever allows user to direct positioning of light path onto specimen, the brightness of Halogen lamp can be adjustable according to your requirement. Bottom Fluorescent: 5W

A Clear Glass Plate (4212): Dia.95mm

Color Filter: with a standard white filter (4213) for Top and Bottom, The Darker Blue (4214) and Bright Blue (4215) for option, Dia.40mm.

Weight: Net weight 17.6 lb

CE Certified

SFT3 Fan-style base and Track Stand

#3230

(3230) SFT3 Fan-style base and Track Stand

Base Dimension: 335mm×305mm×21mm.

Focusing Track Mount (4141) for track stand: The Ring’s ID.76mm for XTG microscope body.[Focusing Track Mount (4142) optional for this track stand: The Ring’s ID.83mm for XTS, XTL, XTD series microscope body.]The distance from track to the plate centerline: 128mm. This stand can be extended to long working distance, with extended to 250mm.Focusing distance: 175mm.

A Black and White Plastic Plate(4211):Dia.95mm

Two Spring Clips (4233) for holding objective.

A Transmitted Light fan-style Base can be attached.  When using the Transmitted Light Base, a Clear Glass Plate(4212) is needed.

Weight: Net weight 11 lb (5kg)

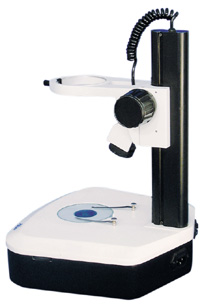

SFT3HF Fan style Base and Track Stand with HF

#3231

(3231) SFT3HF Fan style Base and Track Stand with HF

This Stand with top halogen and bottom fluorescent

Base Dimension: 335mm×305mm×80mm

Input Power: 110V. Top Halogen: 6V, 15W, adjustable top light lever allows user to direct positioning of light path onto specimen. Bottom Fluorescent: 5W

A Clear Glass Plate (4212): Dia.95mm.

Color Filter: with a standard White Filter (4213) for Top and Bottom, Dia.40mm. The Darker Blue

 (4214) and Bright Blue (4215) for option.

Weight: net weight 18.7 lb (8.5kg)


CE Certified

SFTCF3 Fan style Base and Track Stand with Coarse and Fine focusing hand wheel

#3240

(3240) SFTCF3 Fan style Base and Track Stand with Coarse and Fine focusing hand wheel

(3241) SFTCF3HF Fan style Base and Track Stand with HF, with Coarse and Fine focusing hand wheel

(3240) SFTCF3, (3241) SFTCF3HF, (3230)SFT3 and SFT3HF(3231) have the same technical features. But (3240) SFTCF3 and (3241) SFTCF3HF also have features of Coarse and Fine. Focusing hand wheels can focus in “µm” range for observation of precise image in high magnification.

For all of our Light Stands, we provide 220V stand for optional, and different country may have types of plugs.
