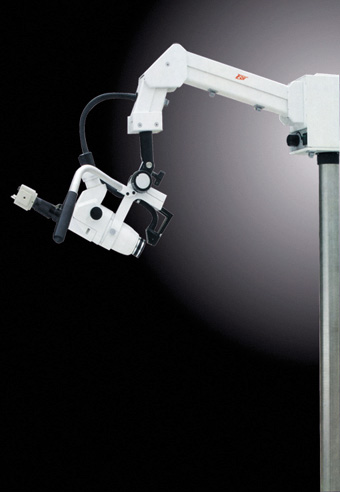

XSS SURFICAL MICROSCOPE
Technical Specifications
Magnifying ratio of objective: 1:7(0.65X-4.5X)
Magnification of eyepieces: WFH10X/22
Magnification: 6.5X-45X
Diameter of visual Field: Φ112.8-Φ16.3mm(optional 0.3X objective)
Working distance: 278mm
Visual angle of eyepiece: 45-90 degree
Interpupillary distance adjustment:55mm-75mm
Light source:21/150W halogen lamp
Illumination: Fiber optic illuminator continuously adjustable
Lux on objective plane: <=100,000LX
Filter: Green
Moving range of suspention arm
Vertical:520mm
Horizontal: ±520-800mm
Forward and backward: ±520-800mm
Height of the suspention arm: 650mm-1120mm
Diameter of chassis: Φ950mm
|
|
.Unique omni-directional mounting system allows an infinite number of viewing angles to examination and surgical procedure in surgery, orthopaedies, neurosurgery, ototaryngology, ophthalmology and gynaecology. .Advanced suspension system keeps the unit stabilized throughout any procedure without adjustment, providing a free working space. .Can be brought to the site easily without any unnecessary shifting of either the patient or physician. .In second, converts to a microscope or procedure scope. .Wide field for initial screening of the entire area, high magnification for diognosis, and low for aid in biopsy or treatment, for instance: examination for skin disease and swollen, observation of blood capillarity, location foreign objectives in the eye or ear, iding wounds or examining lesions in body cavities. .Continuous variable magnification 7x-30x, clear image at any magnification, change focus or magnification while continuing with examination or procedure. .Continuous zoom with stereoscope offers utmost flexibility and precision. .With Equipped fibric light source the patient can not feel scorching hot and dry at the examining position of the body. .CE approved. |

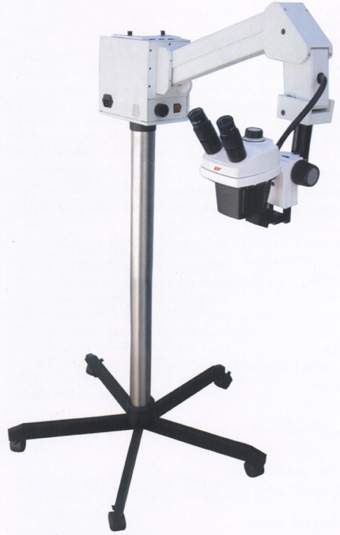

XS4 SURFICAL MICROSCOPE
Technical Specifications
Power of eyepiece: 10x/18B
Ocular inclination: 30 degree
Working distance: 100mm(247mm optional other objectives)
Magnification:7x-30x
Magnifying ratio: 4.3:1
Diameter of view field: Φ26-Φ6mm
Type of illumination: fabric light source with voltage continuously adjustable
Range of focus: 73mm
Moving Range of Suspention Arm
Vertical: 520mm
Horizontal: ±520-800mm
Forward and backward: ±520-800mm
|
#1141+#3710 |
.Unique omni-directional mounting system allows an infinite number of viewing angles to examination and surgical procedure in surgery, orthopaedies, neurosurgery, ototaryngology, ophthalmology and gynaecology. .Advanced suspension system keeps the unit stabilized throughout any procedure without adjustment, providing a free working space. .Can be brought to the site easily without any unnecessary shifting of either the patient or physician. .In second, converts to a microscope or procedure scope. .Wide field for initial screening of the entire area, high magnification for diognosis, and low for aid in biopsy or treatment, for instance: examination for skin disease and swollen, observation of blood capillarity, location foreign objectives in the eye or ear, iding wounds or examining lesions in body cavities. .Continuous variable magnification 7x-30x, clear image at any magnification, change focus or magnification while continuing with examination or procedure. .Continuous zoom with stereoscope offers utmost flexibility and precision. .With Equipped fibric light source the patient can not feel scorching hot and dry at the examining position of the body. .CE approved. |
