SM  SERIES ZOOM STEREO  MICROSCOPE

We are in honors of supplying you new SM series zoom stereo microscope. Two parallel beam paths and high

quality optic system offer you high resolution and distortion-free contrast image throughout the entire zoom

 range, zoom ratio is 8:1, SM also use modular design, we can supply you various packages with the high

resolution and the most valuable microscope.

(1)     Design principle: two parallel beam paths optic system,  modular construction

(2)     Standard set:  SM optic head with 1.0x  plan achromatic  objective

(3)    Zoom range: 0.62x-5x

(4)    Zoom ratio: 8:1

(5)    Magnification: 6.2x-50x  (with accessory lens: 1.9x-400x )

(6)    Working distance: 73mm (with accessory lens: 14mm-278mm)

(7)    Field of view:  33.9mm- 4.2mm  (with accessory lens: 106mm- 0.6mm)

(8)    Interpupillary distance: 50mm-75mm

(9)  Dioptric correction:     +5 -- -5

(10)  Optional objective:     planachrmatic: 0.32x , 0.5x, 0.63x   achromatic: 1.6x, 2.0x

(11)  Optional eyepiece:     WFH10x-D/21, WF16x, WF20x, WF25x, WF40x



NEW SM ZOOM STEREO MICROSCOPE

#1561+#2266+#2180+#3412

SM-3412

SM binocular (#1561) with boom stand (#3412) and 10x eyepiece (#2180),which is high eye point,wide-field, distortion-free.

 1. parallel beam path design

 2. zoom range: 0.62x-5x

 3. total magnification: 1.9x-400x  (with accessory lens)

 4. field of view: 0.6mm-106mm

 5. working distance: 14mm-278mm

 6. Interpupillary distance: Adjustable 50mm- 75mm

 7. dioptric correction: +5 --  -5

#1561+#2266+#2180+#3412+#5410+#5830+#2264

SM Binocular with boom stand and cold light source with ring fiber

( Most Popular SM-PK1-2264)



Beijing Tech PK1 package include: new SM Binocular (#1561), 1X    planachromatic objective (#2266), high eye point, wide-field, distortion-free eyepiece 10X (#2180), boom stand (#3412), cold light source (#5410), ring fiber (#5830) and 0.5X planachromatic objective (#2264), or following optional accessory lens you choose, ring adapter (#2323) is free.



SM-PK1-2263:      0.32X    planachromatic objective

SM-PK1-2264:      0.5X      planachromatic objective

SM-PK1-2265:      0.63X    planachromatic objective

SM-PK1-2266:      1.0X      planachromatic objective

SM-PK1-2261:      1.6X      achromatic objective

SM-PK1-2262:      2.0X      achromatic objective

#1561+#2266+#2180+#5210+#3622

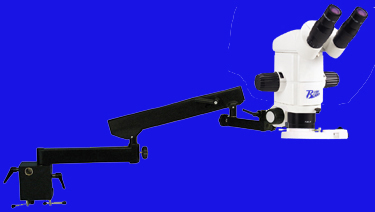

SM Binocular with clamp flexible arm stand

( Most Popular SM-PK3-5210)



Beijing Tech PK3 package include: new SM Binocular (#1561), 1X    planachromatic objective (#2266), high eye point, wide-field, distortion-free eyepiece 10X (#2180), ring fluorescent light (#5210), clamp flexible arm stand (#3622), it is adjustable, counter-balanced section can be moved easily in any position. clamp ensures stability. It is ideal for application in the small lab or the crowed space. Ring  adapter (#2323) is free.

Same microscope body......different stand

#1561+#2266+#2180+#3150

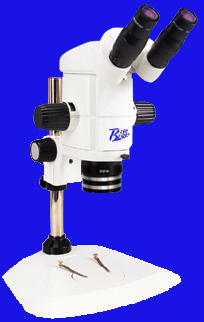

SM-3150

SM Binocular with fan-style base pole stand

SMT-3150

SM Trinocular with fan-style base pole stand



　

#1561+#2266+#2180+#3160

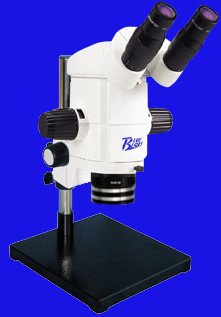

SM-3160

SM Binocular on big base pole stand

SMT-3160

SM Trinocular on big base pole stand

　

#1561+#2266+#2180+#3230

SM-3230

SM Binocular with fan-style base track stand

SMT-3230

SM Trinocular with fan-style base track stand

　

#1561+#2266+#2180+#3512

SM-3512

SM Binocular with twoarms boom stand

SMT-3512

SM Trinocular with twoarms boom stand

　

#1561+#2266+#2180+#3612

SM-3612

SM Binocular with flexible arm pole stand

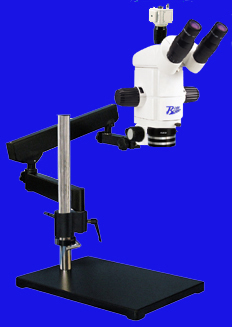

SMT-3612

SM Trinocular with flexiblearm pole stand

　



#1562+#2266+#2180+#3230+#2530

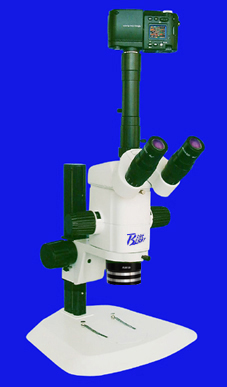

SMT-3230

Trinocular with digital camera



Technical Specification

Eyepiece WFH10X-D/21 WF16X/14 WF 20X/11  WF25X/9 WF40X/6  Working Distance
Objective  Mag.   FOV(mm)  Mag.   FOV(mm)  Mag.   FOV(mm)  Mag.   FOV(mm)  Mag.   FOV(mm)
0.32x

1.9x-

16x

 106-13.1mm 3.2x-25.6x 70.6-8.8mm

3.9x-

32x

 55.4-6.9mm

5x-

40x

 45.4-5.6mm

7.9x-

64x

 32.2-3.8mm 278mm
0.5x

3.1x-

25x

67.7- 8.4mm

5x-

40x

45.2-5.6mm

6.2x-

50x

35.5-4.4mm

7.8x- 62.5x

29-

3.6mm

12.4x- 100x

19.4- 2.4mm

 174mm
0.63x

3.9x-31.5x

53.8-6.7mm

6.2x-50.4x

35.8-4.4mm

7.8x-

63x

28.2-3.5mm

9.8x-78.8x

23-

2.9mm

15.9x-126x

15.4-1.9mm

 138mm
1.0x

6.2x-

50x

33.9-4.2mm

 9.9x-90x

22.6-2.8mm

12.4-

100x

17.7-2.2mm

15.5x-125x

14.5-1.8mm

24.8x-200x

9.7-1.2mm

 73mm
1.6x

9.9x-

80x

21.2-2.6mm

15.9x-128x

14.1-1.8mm

19.8x-160x

11.1-1.4mm

24.8x-200x

9.1-

1.1mm

39.7x-320x

6.1-0.8mm

 50mm
2.0x

12.4x-100x

16.9-2.1mm

19.8x-160x

11.3-1.4mm

24.8x-200x

8.9-

1.1mm

31x-

250x

7.3-

0.9mm

49.6x-400x

4.8-0.6mm

 14mm

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　
