AUXILIARY LENS FOR XTL AND XT SERIES MICROSCOPE

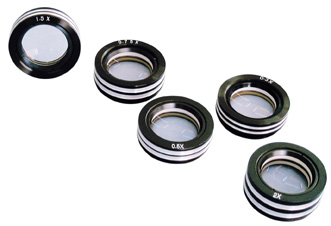

Auxiliary Objective Lens for applications requiring different resolution, magnification, working distance, field of view and depth of view.
For XTL and XT Series: Objective Outside Diameter 49.5mm, thread Outside Diameter 48mm.

Part No.

Auxiliary Lens

Working Distance

#2211

0.3x

263 mm

#2212

0.5x

165 mm

#2213

0.75x

107 mm

/

1x ( Fixed in body)

88 mm

#2214

1.5x

51 mm

#2215

2x

33 mm

#2311

Ring Adapter

88mm

#2312

Ring Adapter with Glass

88mm

The ring Adapter is for holding the Ring Light, when you use an auxiliary lens, you can fix the ring light on the auxiliary lens.
Some times, when you are working with a microscope over heat, steam and particles, you need a ring adapter with a glass

¡¡
