Auxiliary Lens For XTS and XTD
Series Microscope

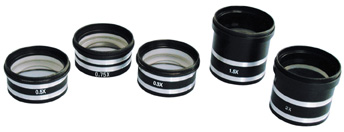

Auxiliary Objective Lens for
applications requiring different resolution, magnification, working
distance, field of view and depth of view.
For XTS and XTD Series:
Objective Outside Diameter 49.5mm, thread Outside Diameter 52mm.
Part No. |
Auxiliary Lens |
Working Distance | |
#2221 |
0.3x |
314 mm | |
#2222 |
0.5x |
189 mm | |
#2223 |
0.75x |
122 mm | |
/ |
1x ( Fixed in body) |
108 mm | |
#2224 |
1.5x Plan Achro |
40 mm | |
#2225 |
2x Plan Achro |
38 mm | |
#2321 |
Ring Adapter |
108mm | |
#2322 |
Ring Adapter with Glass |
108mm |
The ring Adapter is for
holding the Ring Light, when you use an auxiliary lens, you can fix the
ring light on the auxiliary lens.
Some times, when you are working with
a microscope over heat, steam and particles, you need a ring adapter with
a glass
