Focusing Mount

#4112

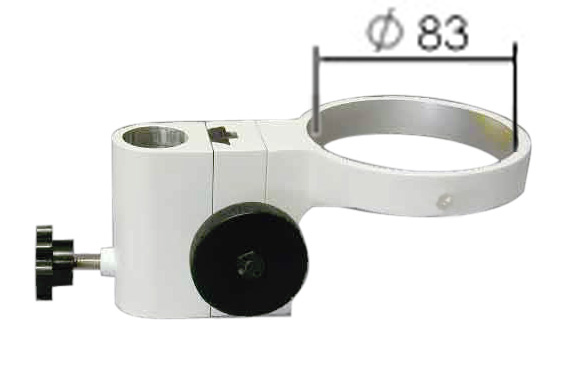

(#4112) Focusing Mount
The vertical working distance 54mm(+26, -28), the Ring’s ID. 83mm for XTS,XTL,XTD and XT series  microscope body, ID 25mm for pole, the centerline to centerline 120mm from ring to hole.


#4113


(#4113) Focusing Mount
The vertical working distance 80mm(+69, -11), focusing hand wheel is adjustable to loosen and tighten, the Ring’s ID. 83mm for XTS,XTL,XTD and XT series microscope body, ID 25mm for pole, the centerline to centerline 140mm from ring to hole.

#4114

(＃4114) Focusing Mount for pole stand

The Ring’s ID.76mm only for SM,SZ7 series microscope body, ID.30mm for pole. the vertical working distance 88mm. Focusing hand wheel is adjustable to loosen and tighten. The distance from FM centerline to pole centerline is 167mm.

#4115

(＃4115) Focusing Mount for pole stand

 The Ring’s ID.83mm only for XTS, XTL, XTD and XT series microscope body, ID.30mm for pole. the vertical working distance 88mm. Focusing hand wheel is adjustable to loosen and tighten. The distance from FM centerline to pole centerline is 167mm.

#4141

 (＃4141) Focusing Track Mount  for track stand

 The Ring’s ID.76mm only for SM,SZ7 series microscope body.  Focusing hand wheel is adjustable to loosen and tighten, only be used for Fan-style base and Track Stand

　

#4142

(＃4142) Focusing Track Mount  for track stand

 The Ring’s ID.83mm only for XTS, XTL, XTD and XT series microscope body.  Focusing hand wheel is adjustable to loosen and tighten, only be used for Fan-style base and Track Stand

#4143

(＃4143) Focusing Track Mount with Coarse and Fine focusing hand wheel

 The Ring’s ID.76mm only for SM,SZ7 series microscope body. It is only be used for Fan-style base and Track Stand. Coarse and Fine focusing hand wheel can focus in “µm” range for observation of precise image in high magnification.

#4144

(＃4144) Focusing Track Mount  with Coarse and Fine focusing hand wheel

 The Ring’s ID.83mm for XTS, XTL, XTD and XT series microscope body. It is only be used for Fan-style base and Track Stand. Coarse and Fine focusing hand wheel can focus in “µm” range for observation of precise image in high magnification.

　

Universal Arm/E-Arm


#4121

 (#4121) Universal Arm (E-Arm)
5/8inch fitting, the ID 83mm Ring for XTS, XTL, XTD and XT series  microscope body, centerline to centerline 6inch from the fitting to ring. Vertical working distance 54mm (+26, -28). Focusing hand wheel is adjustable to loosen and tighten.


#4123

 (#4123) Universal Arm (E-Arm)
5/8inch fitting, the ID 76mm Ring for SM,SZ7 series microscope body, centerline to centerline 6inch from the fitting to ring. Vertical working distance 54mm (+26, -28). Focusing hand wheel is adjustable to loosen and tighten.


#4124

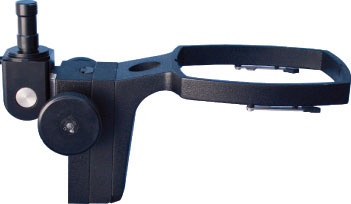

 (#4124) Universal Arm (E-Arm)
5/8inch fitting, the  Ring  only for XTZ microscope body, Vertical working distance 54mm (+26, -28). Focusing hand wheel is adjustable to loosen and tighten.

Ring Adapter

 (#4224) 76mm Ring Adapter
(#4225) 64mm Ring Adapter
These adapters allow you to use our microscope stand, or focusing mount with any of the 76 or 64mm series of stereomicroscope bodies. These substitution results in significant cost savings when compared to others, especially transmitted light stands.
　

　
